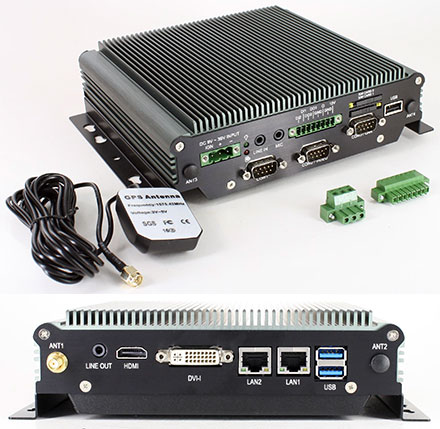

FleetPC-4-D Car-PC (Intel Celeron N3060 2x2.48Ghz, Autostart-Controller, 9-36V Automotive PSU, GPS) [FANLESS]
This MiniPC was especially designed for fleet applications.
The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.
For a full PC you need in addition :
- 2.5" HDD/SSD or SATA DOM module
- 1x SO-DDR-3L RAM (up to 8GB)
The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.
Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609
[more]
incl. 19% VAT, plus shipping
In Stock (11 pcs)
This MiniPC was especially designed for fleet applications.
The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.
For a full PC you need in addition :
- 2.5" HDD/SSD or SATA DOM module
- 1x SO-DDR-3L RAM (up to 8GB)
The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.
Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]
Features :
- Fanless
- Intel Dual Core Celeron N3060 2.48GHz CPU
- Integrated, intelligent Automotive power supply
- 3x RS232
- GPS (ublox 6 with G-sensor)
- 2x Gigabit LAN
- DVI-I + HDMI
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 2 x DI / 2 x DO with Relay 12V / 100mA
- Vibration/shock tested
For FleetPC-4-D we offer an direct connector cable for our TFT-dispays.
Dimensions / Weight | 182mm W x 167.6mm D x 54mm H, 1.4kg |
CPU | Intel Dual Core Celeron N3060 2.48 GHz |
RAM | 1x SO-DDR-3L RAM (up to 8GB) |
Graphics | Intel HD Graphics |
GPS | VDB-800SG (ublox 6 with G-sensor) |
Expansion | - 3x Mini-PCIe |
OS Support | Windows 7, Windows 8.1, Windows 10, Linux |
Vibration & Shock | MIL-STD-810F |
Operating temperature | -40~70°C (with SSD) |
Certification | CE, FCC, eMark |
I/O | - 2x Gigabit LAN (Intel i210-AT) - 3x RS232 (2 with 232/422/485) - 2x USB3.0 - 1x USB2.0 - GPIO port (2in, 2out, with Relay 12V/100mA) - Mic-In, SPK Out - 1x DVI-I (for DVI-D and VGA), 1x HDMI - 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth) |
Drive bays | 1 x 2.5" SATA HDD/SSD drive bay, 1x SATA DOM |
Power supply | 9~36V DC PSU included - Power off Delay Time Setting by Software, Default 5min - Backup Battery Kit (optional) |
Scope of supply | - FleetPC-4-D PC with Intel Celeron N3060 (2x2.48Ghz), mounting brackets |
- 1x Pigtail + Antenna for GPS |
Data sheet | Download (PDF) |
Data sheet | Print view |
Specifications | Download (PDF) |
Manual [EN] | Download |
Drivers (Win7+8+10) | Download |
Test Tools | Download |
Drawing | Download |
![](http://wcom-gps.de/carpcimages/MiniPC/img/stars_select.png)
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
VDM-700HD 7" TFT - Touchscreen (AIO-connector, HDMI, Multi-Touch, only f. FleetPC)
HSPA / UMTS / EDGE / LTE 4G Mini-PCIe Modem (Huawei ME909s-120 55010983)
HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609) -- with pigtail/antenna --
HSPA / UMTS / EDGE / LTE 4G Mini-PCIe Modem (Huawei ME909s-120) -- with pigtail/antenna --
HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609)
Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB] -- With Pigtails/Antennas --
Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB]
Replacement power connector for FleetPC-4 / FleetPC-5 / FleetPC-7-B / FleetPC-8 (3pol)
FleetPC-4 / FleetPC-5 / FleetPC-7-B / FleetPC-8 Connector cable for CTFHD-TFT Displays - 5m -
Home-power-adapter f. FleetPCs
FleetPC-4 / FleetPC-5 / FleetPC-7-B / FleetPC-8 Connector cable for CTF-, MM-, MH- TFT Displays (with rear camera input) - 5m -
Backup battery kit f. FleetPC-4 / FleetPC-5 / FleetPC-7-B
Replacement GPIO connector for FleetPC-4 / FleetPC-5 (8pol)
Reset button for FleetPC-4
Rubber dust protection plug f. 3.5mm audio-jack
tested with SSD, Windows 10 and 84W AC Adapter
Standby without ign. : 2,8W
Windows Standby 6,5W
Systemboot: 19,5W
Idle: 14,2W
full load: 22,8W
Modem compatibility
Compatible with Mobile partner or network connection
- Windows 7 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2
- Windows 8 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2
- Windows 10 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2
Not compatible with Mobile partner only with network connection
- Windows 8 [32/64bit]: ME909s120
- Windows 7 [32/64bit]: ME909s120
Assignment of Antenna-Connection
ANT 1 = GPS (Please connect the included GPS Antenna to this Connector)
-- If you order additional to the System WLAN/Bluetooth or 3G/UMTS/LTE Device we will assemble the Antenna-Connectors as follow: --
ANT 2 = 3G/LTE/UMTS
ANT 3 + 4 = BT/WLAN
FleetPC-4-D Windows compability
Windows 7 (32/64bit) with USB Patcher Patched ISO
Windows 8 (64bit) [Intel released no SerialIO driver for Windows 8 32bit]
Windows 10(32/64 bit)
