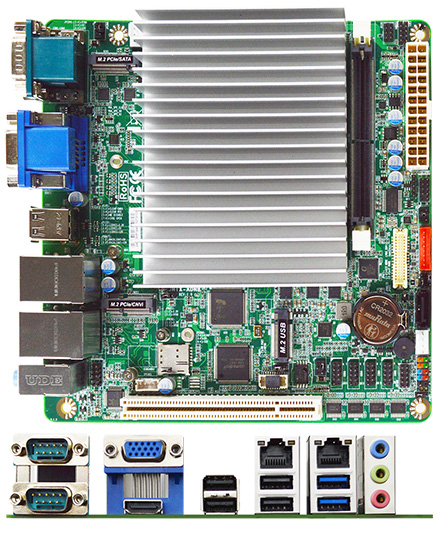

Jetway JMTX-ADN8 Mini-ITX (Intel N-Series (Alder Lake), 6x USB, 2x RS232, 2x LAN) [FANLESS]

Jetway JMTX-ADN8 Mini-ITX (Intel N-Series (Alder Lake), 6x USB, 2x RS232, 2x LAN) <b>[FANLESS]</b>
  • Intel Alder Lake-N !
  • SoC-N97 !
  • 6* USB, 2x RS232 !
  • MiniITX !

  • 1 x DDR5 SODIMM Slot, up to 32GB
  • Three Independent Display: 1 x HDMI 2.0b, 1 x VGA, 1 x LVDS/eDP
  • 2 x 1GbE
  • 2 x USB3.2 Gen1, 7 x USB2.0
  • 1 x M.2 2242/2280 M-key, 1 x M.2 2230 E-key, 1 x M.2 3042/3052 B-key
  • 1 x PCI, 1 x SATAIII
  • ATX Power





Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
SYSTEM
FORM FACTOR Mini-ITX
CPU Onboard Intel® Processor N-series Processors (formerly Alder Lake-N)
Intel® Processor N97
*For additional compatible CPUs, please contact regional sales
CPU TDP 12W
CHIPSET Integrated with Intel® SoC
MEMORY TYPE 1 x DDR5 4800MHz, Single Channel SODIMM, up to 32GB
BIOS UEFI
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY TPM2.0 (Optional)
RTC BATTERY Lithium Battery 3V/200mAh
DIMENSION (L X W) 170mm x 170mm (6.7″ x 6.7″)
OS SUPPORT Windows® 10 (64bit), Windows® 11 (64bit)
Linux
POWER
POWER REQUIREMENT ATX
POWER SUPPLY TYPE AT/ATX
CONNECTOR 24pin Header
DISPLAY
CONTORLLER Intel® UHD Graphics
LVDS/eDP/MIPI-DSI 1 x 24 Bit Dual Channel LVDS, up to 1920 x 1080 @60Hz, co-lay eDP
DISPLAY INTERFACE 1 x HDMI 2.0b, up to 4K x 2K @60Hz
1 x VGA, up to 1920 x 1080 @60Hz
MULTIPLE DISPLAY Support 3 Displays
AUDIO
CODEC Realtek ALC897 with 3W Amp.
AUDIO INTERFACE 1 x Line-in
1 x Line-out
1 x MIC
SPEAKER 1 x Internal Speaker Connector with 3W Apm.
EXTERNAL I/O
ETHERNET 2 x Realtek® RTL8111H GbE
USB 2 x USB3.2 Gen 1
4 x USB2.0
SERIAL PORT 2 x RS232/422/485 (COM1 support 5V/12V selectable)
VIDEO 1 x HDMI 2.0b
1 x VGA
INTERNAL I/O
USB 3 x USB2.0
SERIAL PORT 4 x RS232 (COM3 support 5V/12V selectable)
VIDEO 1 x 24 Bit Dual Channel LVDS, up to 1920 x 1080 @60Hz, co-lay eDP
AUDIO 1 x Speaker Connector
GPIO 8-Bit
SMBUS Yes
I2C Yes
FAN 1 x CPU Fan, 1 x System Fan
SIM 1 x SIM Card
FRONT PANEL HDD LED
PWR LED
Power Button
Reset
OTHERS 1 x Chasis Intrusion, 1 x Buzzer onboard
STORAGE
SATA 1 x SATAIII
MINI PCI-E/MSATA
M.2 1 x M-Key 2242/2280 (SATAIII/PCIe 3.0 x1) support NVMe
eMMC eMMC 64GB (optional)
EXPANSION
M.2 1 x E-key 2230 (USB2.0/PCIe 3.0 x1) support CNVi
1 x B-key 3042/3052 (USB3.2 Gen1/USB2.0) for 4G/5G module
OTHERS 1 x PCI
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -20°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE -20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY 10% ~ 90% relative humidity, non-condensing
CERTIFICATION Meet CE/FCC Class A
