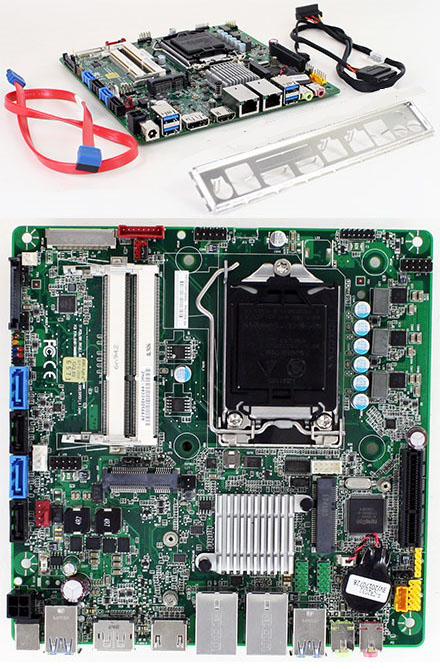

Mitac PH12LI-Q87-19V-BCP Thin-ITX (Intel Q87, LGA1150, 2x LAN) [SPECIAL OFFER]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Mitac PH12LI-Q87-19V-BCP Thin-ITX (Intel Q87, LGA1150, 2x LAN) <b>[SPECIAL OFFER]</b>
3D 360° View
  • 19V !
  • half-height !

  • Special Offer, only half-height I/O-Shield included
  • Support Intel 4th generation Intel Core Processor
  • LGA1150 Socket H3 CPU compatible (up to 65W)
  • Intel® vPro™ Technology support for business security
  • Dual high speed Gigabit Ethernet connection
  • Two PCI Express Mini Card connector for expansion
  • Features 4 SATA3 (6Gbps)
  • 4 Hi-Speed external USB3.0 ports support
  • Dual display connectivity by DP-out & HD-out
  • Embedded LVDS connectivity


Share

RAM :
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])
Processor Intel Haswell H3 LGA1150 CPU Socket Support up to Dual/Quad core 65W
Chipset Intel Lynx Point Q87 Chipset
Memory
Support for DDR3 1066/1333/1600 MHz SO-DIMMs Support for up to 16 GB of system memory
204-pin DDR3 SO-DIMM 2
Display
HD-in & HD-out connector 40P Embedded LVDS connector
Audio RealTek* ALC888 audio codec for 7.1 (8-channel) High Definition Audio (HD Audio) Included are: Back panel audio connectors: Line-out & Mic 1 x Audio header for stereo speakers 1 x Audio header for front Panel Mic/Hp 1 x Audio header for DMIC
Expansion Capability
PCI Express x 4 slot 1
PCI Express Full-/Half-Mini Card slot 1
PCI Express Half-Mini Card slot 1
Peripheral Interfaces
USB 2.0 front panel ports 3 (Headers)
Serial port header 2
SATA 3.0 Gb/s 4
Legacy I/O
Legacy I/O Controller (NCT6683D)
Security
Intel® vPro™ Technology support
TPM security by Nuvoton NPCT420AA0WX(optional)
LAN Support Intel Clarkville I217-LM/I210-AT Gigabit (10/100/1000 Mb/s) IC
Dual Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
BIOS
UEFI Bios
64+32Mb Dual SPI
Support for Advanced Configuration and Power Interface (ACPI) setting
Instantly Available PC Technology
Suspend to RAM support Wake on PCI Express, LAN, front panel, serial, and USB ports
Hardware Monitor Subsystem Hardware monitoring through the Nuvoton6683D legacy I/O controller, including: Remote thermal sensor Speed control for 4-pin system fan header and 4-pin CPU fan header
Power Requirement DC-in 19V (7.4mm*5.0mm / OD) / ATX 2-pin 19V
Environment Operating Temperature: 0°C to +50°C Storage Temperature: -20°C to +70°C
Safety CE FCC UL
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
