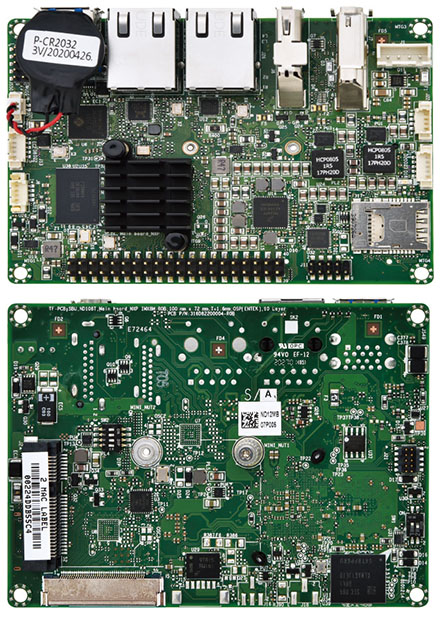

Mitac ND108T-8MD-1G8G 2.5" SBC Pico-iTX (NXP i.MX8M Dual Core, 1GB RAM, 8GB eMMC, Raspberry 40pin)

Mitac ND108T-8MD-1G8G 2.5" SBC Pico-iTX (NXP i.MX8M Dual Core, 1GB RAM, 8GB eMMC, Raspberry 40pin)
  • Pico-iTX !
  • NXP i.MX8M !
  • 1GB DDR4 !
  • 8GB eMMC !



  • NXP i.MX8M Dual Core & Quad Core Processor
  • 1GB LPDDR4 Memory (Options for 2GB / 4GB)
  • 8GB eMMC Storage (Options for 16GB / 32GB)
  • 1 x Giga LAN
  • 1x HDMI (4K), 1x LVDS(FHD)
  • Support 1 x Mini PCIe expansion slot
  • Support 1 x Raspberry Pi fully Compatible 40-pin Header
  • Up to 2 x USB 3.0, 2 x USB 2.0, 1 x COM port (x RS232/422/485) 12V DC Power Input


Share

169.95 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
MECHANICALFORM FACTORPico-iTX 2.5" SBC: 3.94" x 2.84" (100 mm x 72 mm)
SYSTEMPROCESSORNXP® i.MX8M Family: / 8M Quad (4 x Cortex-A53 @ 1.3GHz) / 8M Dual (2 x Cortex-A53 @ 1.3GHz)
CHIPSETi.MX8M SoC Integrated
SYSTEM MEMORYSingel Channel LPDDR4 800MHz Memory Onboard with Options for 1GB / 2GB / 4GB)
GRAPHICSI.MX8 Integrated
ETHERNET1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN
I/O CHIPSETNuvoton NCT6683D
AUDIORealtek® ALC5660
EXPANSION SLOTMini PCIe Full / Half size (PCIe / USB)
STORAGEOnboard eMMC with Options for 8GB / 16GB / 32GB
WATCHDOG TIMERYes
GRAPHICSVGA-
DVI-
HDMIUp to 4K (4096 x 2160) @60 Hz
DISPLAYPORTUp to FHD (1920 x 1080)@60 Hz
LVDSUp to FHD (1920 x 1080)@60 Hz
eDP (Option)-
REAR I/OUSB2 x USB 3.0
DISPLAY I/O1 x DisplayPort 1.2 / 1 x HDMI 2.0
AUDIO I/O-
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERS-
INTERNAL CONNECTORSSTORAGE1 x Micro-SIM or Micro SD combo card slot
USB1 x USB 2.0 Port Header / 1 x USB 2.0 OTG port Header
DISPLAY I/O1 x Backlight Connector / 1 x LVDS / 1 x LCD PWR Selection Header
AUDIO I/O1 x Audio Header (Mic-in & Line-out)
SERIAL PORT1 x RS232 / 422 / 485
GPIO-
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x 8-pin ATX Power Connector / 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper
OTHERS1 x 40-pin General Purpose Header (Fully Compatible with Raspberry Pi 40-pin Header) *Raspberry Pi is a trademark of the Raspberry Pi Foundation
POWER REQUIREMENTPOWER INPUTDC-in 12V (4-pin Power Connector)
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTYocto Sumo (Kernel version 4.14.98) BSP Support / Android 9 Pie (Kernel version 4.14.98) BSP Support
PACKING LISTPACKAGE1 x Motherboard / 1 x Quick Installation Guide
