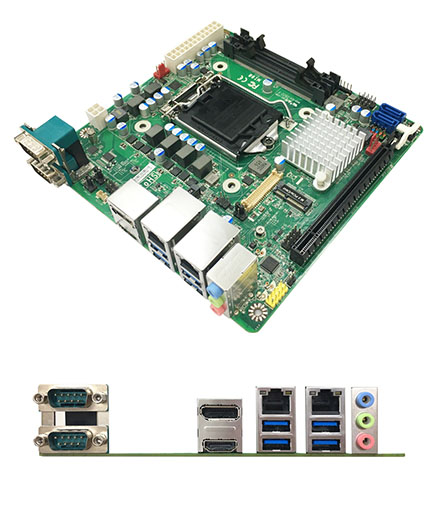

Jetway MI98-02 (Intel LGA1151 Socket, TPM2.0)

Jetway MI98-02 (Intel LGA1151 Socket, <b>TPM2.0</b>)
  • Socket-H310 !
  • eDP (Max 4096×2304@60Hz) !

The JETWAY MI98 Series is Mini ITX form factor board adopts the Intel® 8th Core i3/i5/i7/Pentium/Celeron Processor & H310 Chipset. The board supports two SO-DIMM DDR4 2666Mhz memory, up to 32GB. Featuring the integrated Intel® & Realtek Gigabit Ethernet controller, the MI98 offers two 10/100/1000Base-TX Ethernet device for network transmission. Two SATAIII (6Gb/s) interface and one M.2 M-key offer storage devices. Four USB3.1 Gen.1 ports, Four USB2.0 ports and two COM ports provide versatile expansion. The M.2 E-key 2230 can support WiFi card. The MI98-00 offers one HDMI port, one DP and one eDP port. Because of the above features, MI98 is suitable for Industrial, Automation Solution appli [more]

Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

The JETWAY MI98 Series is Mini ITX form factor board adopts the Intel® 8th Core i3/i5/i7/Pentium/Celeron Processor & H310 Chipset. The board supports two SO-DIMM DDR4 2666Mhz memory, up to 32GB. Featuring the integrated Intel® & Realtek Gigabit Ethernet controller, the MI98 offers two 10/100/1000Base-TX Ethernet device for network transmission. Two SATAIII (6Gb/s) interface and one M.2 M-key offer storage devices. Four USB3.1 Gen.1 ports, Four USB2.0 ports and two COM ports provide versatile expansion. The M.2 E-key 2230 can support WiFi card. The MI98-00 offers one HDMI port, one DP and one eDP port. Because of the above features, MI98 is suitable for Industrial, Automation Solution applications.




  • Support Intel® 8th Core i3/i5/i7/Pentium Processor
  • 2* DDR4 2666MHz SO-DIMM up to 32GB
  • 2* 10/100/1000 Base-TX Ethernet Ports
  • 1* HDMI, 1* DP, 1* eDP
  • 2* COM, 4* USB3.1 (Gen.1), 4* USB2.0
  • 1* M.2 M-key 2242/2280 support NVMe, 1* M.2 E-key 2230, 2* SATA III (6Gb/s), 1* PCIe x16 slot
  • Support ATX PWR
  • Support TPM2.0 (only MI98-02 Version)


Model – MI98-00
– MI98-02 (Equipped with TPM2.0 model)
Form Factor – Mini ITX (170 * 170mm)
Processor System – Intel® 8th Core i3/i5/i7/Pentium/Celeron LGA Processor
– AMI Flash ROM BIOS
– H310 chipset
Expansion Slot – 1* M.2 E-key (2230) Support USB2.0 & PCIex1 interface
– 1* PCIe x16 slot
Memory – 2* SO-DIMM DDR4 2666MHz Dual CH SDRAM non-ECC up to 32GB
Graphics – Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– 1* DP (Max Resolution: 4096 x 2304@60Hz)
– 1* HDMI (Max Resolution: 4096×2160@30Hz)
Ethernet – 2* GbE (1*Intel i219V, 1* Realtek 8111H)
Audio – 6 channel HD audio: Realtek® ALC662VD
Storage – 2* SATAIII
– 1* M.2 (M-key, 2242/2280. SATA with PCIe x4 interface support NVMe)
Rear I/O – 4* USB3.1 (Gen1)
– 1* HDMI
– 1* DP
– 2* RJ45
– 2* COM (COM1 support RS232/422/485)
– Line-in/Line-out/MIC
Internal Connector – 4* USB2.0
– 1* eDP
– 2* SATAIII
– 1* GPIO (8 bit)
– 1* Audio Header
– 1* SMBUS
– 1* PS/2
– 1* CPU FAN
– 1* TPM2.0 onboard (MI98-02)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power AT/ATX mode Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -40°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
