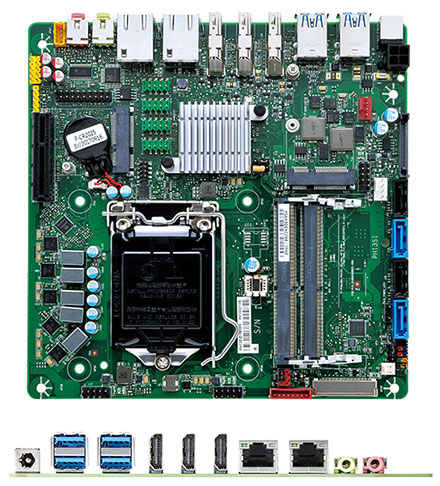

Mitac PH13SI (SKU D1) Thin-ITX (Intel Q170, LGA1151 Skylake)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Mitac PH13SI (SKU D1) Thin-ITX (Intel Q170, LGA1151 Skylake)
3D 360° View

  • Support Intel Kabylake / Skylake processors
  • Dual channel DDR4 260-pin SO-DIMM(up to 32GB)
  • Intel® vPro business-grade technology support
  • Dual high speed Gigabit Ethernet connection
  • Two PCI Express Mini Card connector for expansion
  • Features 4 SATA3 (6Gbps)
  • Triple display connectivity by HDMI
  • Embedded LVDS or eDP connectivity (BOM Option)
  • Onboard 4 serial ports


Share

RAM :
Item Spec
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])
Processor CPU Type : Intel Skylake / Kabylake Processor
CPU Core : Dual Core / Quad Core
Socket : Socket LGA1151
TDP : Support up to 65W CPU types
Chipset Chipset Series : Intel® Q170 Chipset
Memory Memory Type: DDR4 SODIMM @1.2V, 2133/2400MHz (Unbuffered Non-ECC)
Memory Channel: Dual Channel
Memory Capacity : Support total up to 32GB
ECC Support : No
Memory Socket: 260-pin So-DIMM socket 2
Audio Codec: HD audio codec, Realtek ALC662
Expansion Capability PCIe 3.0 x 4 slot 1
PCI Express Full-/Half-Mini Card slot (PCIe/USB/SATA) 1
PCI Express Half-Mini Card slot (PCIe/USB) 1
External I/O HD-out 3
USB 3.0 4
RJ-45 2
Line-Out 1
Mic-In 1
DC-In 1
Internal I/O 40PIN Header LVDS Connector 1
front audio Header (Mic/HP) 1
standard header for DMIC 1
audio header to support system stereo speaker 1
USB 2.0 2 x 5 header 3
Serial port header 4
MiAPI Programmable header 1
SATA 3.0 6Gb/s (support RAID 0,1) 4
CPU fan header 1
Security Nuvoton NCT6104D
LAN Support Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
BIOS Support for Advanced Configuration and Power
Interface (ACPI) setting
Instantly Available PC Technology Suspend to RAM support
Wake on PCI Express, LAN, front panel, serial, and USB ports
Hardware Monitor Subsystem Hardware monitoring through the Nuvoton6104D legacy I/O controller, including:
Remote thermal sensor
Speed control for 4-pin system fan header and 4-pin CPU fan header
Power Requirement DC-in 12V(2.5mm/ ID, 5.5mm/ OD)/ ATX 4pin 12V
Environment Operating Temperature: 0 °C to +60 °C
Storage Temperature: -20°C to +70°C
OS Support Skylake: win7, win8.1, win10, linux support by request
Kabylake: win10, linux support by request
Safety CE
FCC
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
Specifications Download (PDF)
MiAPI Interface Download
