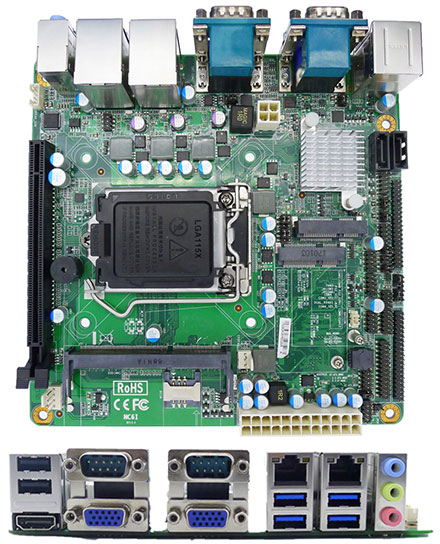

Jetway NC6I-IH81 (Intel H81)

Jetway NC6I-IH81 (Intel H81)

  • Support DDR3 /DDR3L 1600/1333 up to 16GB
  • 4 * USB3.0 (PCI-E to USB3.0), 8 * USB2.0, 2 * GbE
  • 12 * RS232(COM1/COM2 support RS232/422/485, COM3/COM4 support RS232/485)
  • 2 * CRT Ports (CRT2 support Dummy load function)
  • SIM Card Socket, TPM Header
  • 4 Phase CPU Power Support 84W CPU


Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Form Factor
Dimensions – Mini-ITX (170 * 170mm)
 Processor System
CPU – Intel LGA 1150 Socket Core i7/i5/i3/Pentium Processor
Core Number – (by CPU)
Max Speed – – (by CPU)
L2 Cache – (by CPU)
Chipset – Intel H81 Express chipset
BIOS – AMI 32Mb Flash ROM
 Expansion Slot
PCI – 0
mSATA – 1 (full size ,Co-lay Mini PCI-e)
PCIe – 1 (by 16)
Mini-Pcle – 2 (full size)
TPM Header – 1
SIM Card Socket – 1
Memory
Technology – DDR3L 1600/1333MHz
Max. – 16GB
Socket – 2* SO-DIMM
 Graphics
Controller – Intel ® HD Graphics
VRAM – Shared system memory
VGA – 2
DVI-D – 0
HDMI – 1 (1.4b)
Display Port – 0
  Ethernet
Ethernet – 10/100/1000 Mbps
Controller – GbE LAN:2* Intel i211AT
Connector – 2 * RJ 45
 SATA
Max Data Transfer Rate – 2 * SAT3.0 (6.0Gb/s)
 Rear I/O
DVI-D – 0
HDMI – 1
DisplayPort – 0
Ethernet – 2
Audio – 1 (3JACK)
USB – 4 * USB 3.0 + 2* USB2.0
PS2 – 0
Internal Connector
DisplayPort – 1
USB – 6 *USB2.0
PS2 – 1
HDMI – 0
Display Port – 0
Serial – 10 ( COM3/COM4 Support RS232/485)
SATA – 2 * SATA3.0
MiniPCI-e – 2 (full size)
Parallel – 1
M-SATA – 1 (full size, Co-lay Mini PCI-e)
GPIO8-bit – 1 (4 * IN +4 * OUT)
TPMheader – 1
Chassisintrusion – 1
SpeakerHeader – 1
LANLED Header – 1
AT Mode – 1
Watchdog Timer
Output – From Super I/O to drag RESETCON#
 Power Requirements
InputPWR – 4 Pin / 24 Pin ATX PWR Connector
PowerOn AAT/ATX Supported
‐ AT : Directly PWR on as Power input ready
‐ ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: -10°C – 60°C
– Storage: -20°C – 85°C
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
