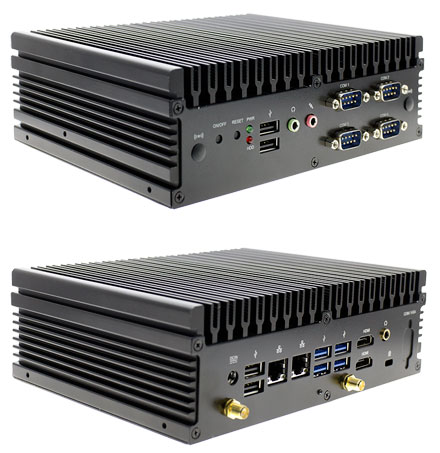

Jetway JBC382F3E-5200U (Intel Haswell)

Jetway JBC382F3E-5200U (Intel Haswell)

  • INTEL® Haswell / Broadwell SoC Processor
  • 2* DDR3L 1333/1600 up to 16GB
  • Support 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * 24 bits Dual Channel LVDS header
  • 1 * mPCIE
  • 1 * mSATA (share with mPCIE)
  • 2 * USB 2.0 + 4 * USB 3.0
  • 2 * HDMI Output
  • Supports 2 * Gigabit LAN
  • Support CPU Smart FAN
  • DC IN Jack 9~24V




Share

889.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Dimension (W*H*D) 185 * 60 * 142 mm
Construction Aluminum housing
Colors Black
MB model JNF3E-4300U (3.5 “ SBC)
CPU & CHIP INTEL® Haswell ULT i5-4300U
BIOS AMI 32MB SMT Flash ROM
Memory 2 * SO-DIMM (DDR3-1333/1600Mhz_Max 16GB)
Storage Space 1 * 2.5” SATA Device (Support SATA 6G / Max Height 9.5 mm) 1 * m-SATA SSD Device (Mini PCI-E)
Display Interface 2 * HDMI 1 * LVD-24 bits ( Internal pin header)
Network 2 * RJ45 (I211AT + I218LM Gigabit LAN) WiFi (optional / JBC382F3EW-4300UB)
Audio 1 * Audio
Front I/O Port 2 * USB 2.0 4 * COM
Rear I/O Port 4 * USB 3.0 2 * USB 2.0
Expansion Interface 1 * Mini PCI-E (Half-size)
Power Source DC-12V Jack input Adapter : AC_90~240V / DC_12V_5A / 60W
Certification EMC : CE , FCC Safety : RoHS , ErP
Environment Operating Temperature : 0 ~ 50℃ Storage Temperature : 0 ~ 60℃ Vibration During Operation : N/A Shock During Operation : N/A
Mounting Wall mounting Kits
­­Packing Net Weight：2.2KG Gross Weight：3.5KG Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
