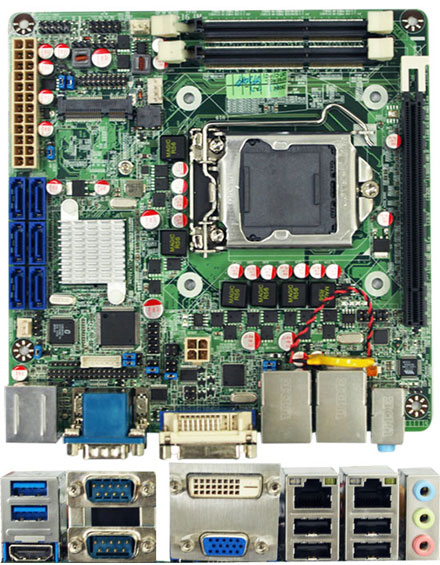

Jetway NF9E-Q77 (Intel Q77)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF9E-Q77 (Intel Q77)

  • Intel® Q77 Express Chipset
  • Supports Intel LGA 1155 Socket Core™ i3, i5, i7 & Pentium Processors
  • 2 * Dual Channel DDR3-1333/1066 up to 16GB
  • Intel 82579LM & 82574L Gigabit LAN
  • Intel Active Management Technology ( iAMT 8.0)
  • PCI Express x16 Slot
  • Integrated 24-bit Dual Channel LVDS
  • 4-port SATAII 3Gb/s & 2-port SATA III 6Gb/s with RAID 0, 1, 5, 10 Support
  • HDMI, DVI-D and VGA Video Outputs
  • Built-in Watchdog Timer Technology
  • Mini-ITX Form Factor (170mm x 170mm)


Share

CPU INTEL® LGA 1155 Socket Core i7/i5/i3/Pentium Processor
Chipset INTEL® Q77 Chipset
Memory 2 * SODIMM Sockets for un-buffered Dual CH DDR3 1333/1066 Max. up to 16GB
Expansion Slots 1 *PCIe x 16
1 * Mini PCI-E socket (half size card)
Storage 2 * Serial ATA3 6Gb/s & 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Intel 82579LM & 82574L PCI-E Gigabit Ethernet LAN
LVDS Onboard 24-bit dual channel LVDS connector
USB Embedded 6 * USB 2.0/1.1 & 4 * USB 3.0
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O 4 * USB 2.0/1.1 ports
2 * USB 3.0 ports
2 * RJ-45 port
1 * HDMI port
2 * COM ports (COM2 RS232/422/485)
1 * DVI-D port
1 * VGA port
3 * Audio Phone Jack
Internal I / O 1 * USB 2.0/1.1 headers for 2 USB 2.0 ports
1 * USB 3.0 headers for 2 USB 3.0 ports
1 * PS2/KB header
CPU /NB / Chassis Fan connectors
1 * GPIO header
1 * CIR header
1 * Chassis Intrusion header
1 * AUDIO header
1 * 24-pin & 4-pin 12V ATX Power connectors
BIOS AMI EFI 64MB SMT Flash ROM
Form Factor Mini-ITX Form Factor (170mm x 170mm)
Functional ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
